A New Chapter: From Software to Hardware
We have expanded from software into hardware with the launch of SYNCGEARS, beginning with our first machine OMNISCAN™ Black.
OMNISCAN™ Black marks a significant evolution — from building intelligent software to engineering intelligent physical systems that see, learn, and continuously improve.
What is OMNISCAN™ Black?
OMNISCAN™ Black: Design Gallery

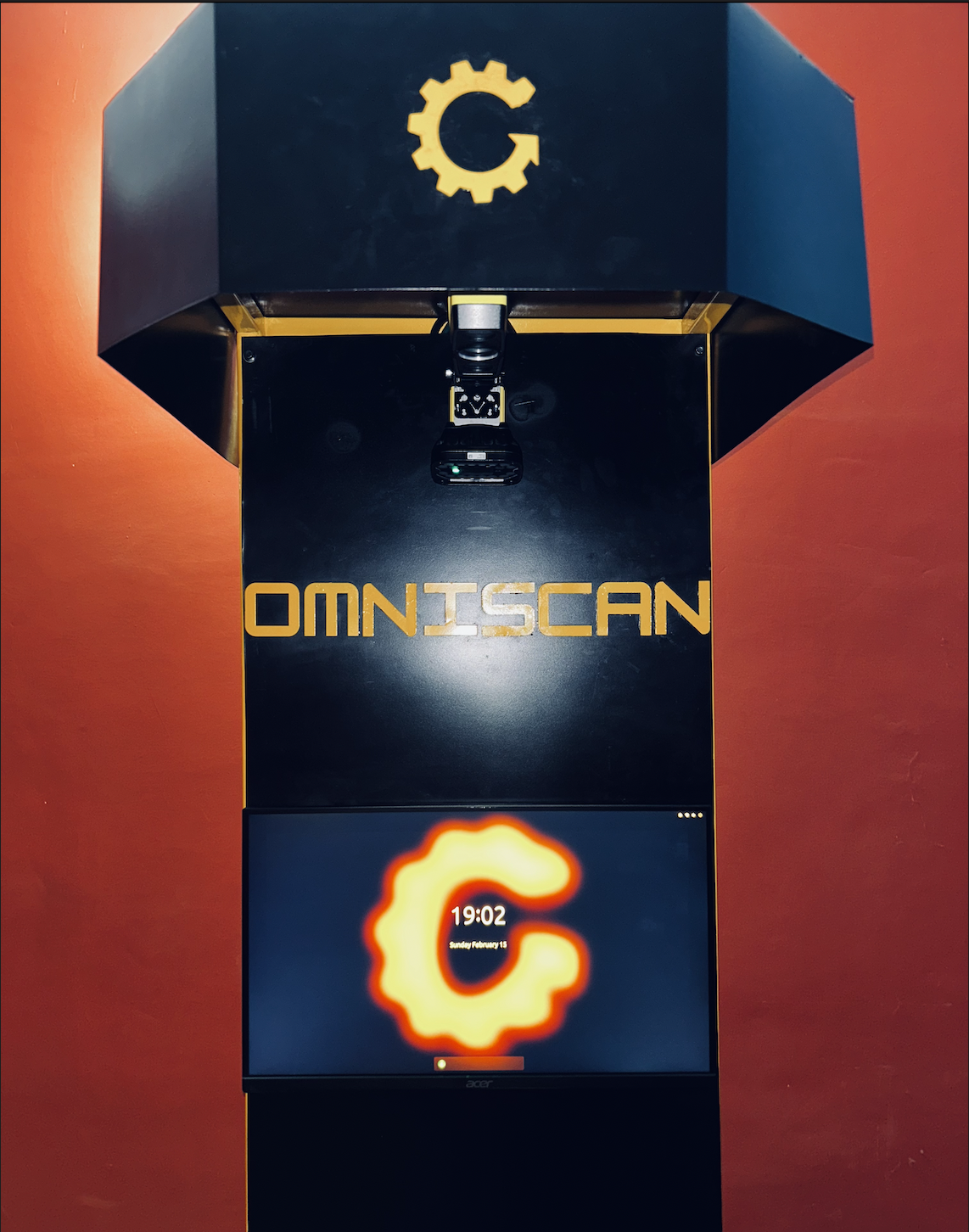

Front view showing clean industrial design
Integrated cable management, no visible wiring
Processing parcels in a live warehouse environment

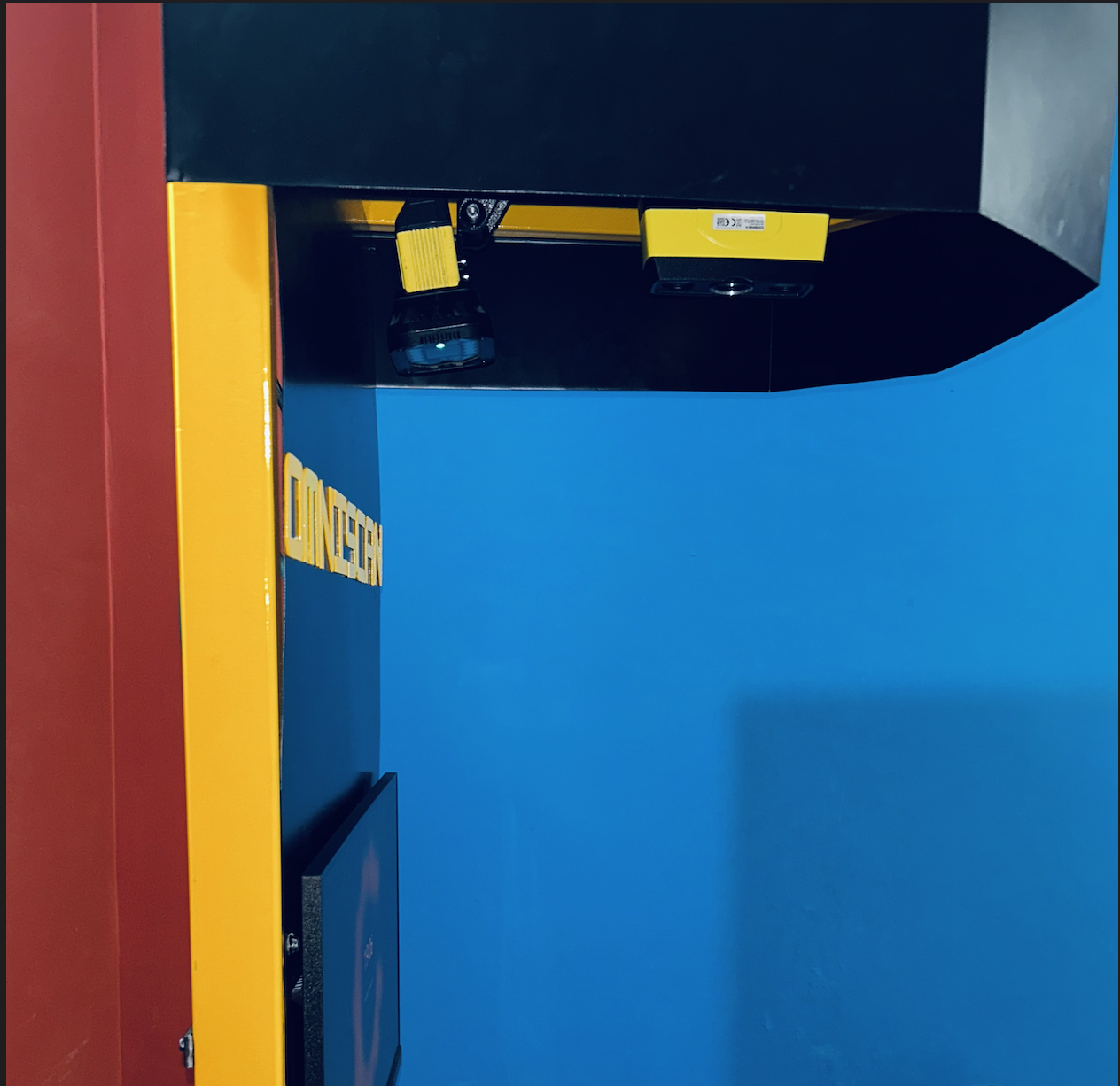

Vision-based 3D scanning system and enclosed sensors
OMNISCAN™ Black is our flagship dimensional profiling system that delivers sub-second scanning performance for high-intensity operational environments processing tens of thousands of parcels daily. It achieves:
- Sub-second scanning - Complete dimensional and weight profiling with barcode in under 1 second
- High throughput - Real-world performance exceeding 1,000+ parcels per hour
- Vision-based precision - 3D scanning with 10mm (0.3 inch) dimensional accuracy
- Wide range capability - Handles parcels up to 450mm × 450mm × 450mm and 50g to 50kg
Engineering for Operational Durability
Built to Last
The system is engineered with operational durability at its core:
- No exposed sensors - All sensors fully enclosed and protected
- No visible wiring - Clean cable management integrated into the frame
- No fragile external components - Industrial-grade construction
- Minimal moving parts - Reinforced steel frame designed for 24/7 operation
Human interaction is intentionally reduced to essential handling — picking and placing — while the system manages intelligent profiling and processing with precision.
Vision-Based 3D Technology
Advanced sensors capture the complete dimensional profile of each parcel:
- Multi-spectrum vision system captures parcel geometry
- Real-time 3D point cloud construction
- Precise dimensional measurements with 10mm accuracy
- Integrated barcode scanning including micro-barcode recognition
Powered by G1 (AI)
G1 — meaning जीवन (life) in Hindi — transforms machinery into adaptive systems that see, learn, and continuously improve with use.
Every moment, G1 makes thousands of decisions. Every day, it becomes smarter. Every operation, more refined.
What G1 Does:
- Vision - Sees every detail, understands every dimension, captures what matters
- Learning - Adapts to your workflow, evolves with your operation, improves continuously
- Prediction - Anticipates needs, prevents failures, optimizes before problems arise
- Integration - Connects seamlessly, orchestrates intelligently, unifies everything
Technical Specifications
Measurement Capabilities:
| Measurement | Range |
|---|---|
| Length | 0.98 inch (2.5cm) – 17.71 in (45cm) |
| Width | 0.98 inch (2.5cm) – 17.71 in (45cm) |
| Height | 0.39 inch (1cm) – 19.68 in (50cm) |
| Weight | 0.11 lbs (0.050kg) – 110.2 lbs (50kg) |
Physical Specifications:
- Height: 87.5 inches (222.25cm)
- Width: 19.6 inches (50cm)
- Length: 22 inches (55.88cm)
Performance:
- Operating speed: < 1 second per parcel
- Dimensional increment: 0.3 inch (10mm)
- Weight increment: 0.02 lbs (0.010kg)
Measurement Sensors:
- Load cells (C3)
- Vision-based 3D scanning
- Mounted barcode scanner
Key Features
✓ No Naked Sensors
✓ No Visible Cables
✓ Simple UI, Easy UX
✓ Customizable Technology
✓ Custom Trigger & Logic
✓ Advanced Categorization
✓ Liquid/Real Volume
✓ G1 inside
✓ 24/7 Service & Support
Universal Scanning Capability
From irregular shapes to standard boxes, OMNISCAN™ captures every dimension with precision — no parcel left behind.
- Universal Scanning - Handles any shape, any size within range
- Micro-Barcode Recognition - Advanced optics read even the smallest, damaged, or poorly printed barcodes
- Industrial Durability - Reinforced construction for years of reliable service
- Future-Proof Design - Modular architecture allows seamless upgrades as technology evolves
The OMNISCAN™ Family
OMNISCAN™ Black is the first in our planned family of intelligent scanning systems.
Coming Soon:
- OMNISCAN™ White - Q2 2026
- OMNISCAN™ Grey - Q3 2026
Each model designed for specific operational requirements. More details to be announced.
Real-World Impact
OMNISCAN™ Black has been designed, developed, and rigorously tested for:
- High-intensity operational environments
- Processing tens of thousands of parcels daily
- Seamless integration into existing workflows
- Consistent precision under demanding conditions
Integration Benefits
- Automatic data capture and validation
- Real-time dimensional profiling
- Advanced categorization and routing
- Comprehensive operational insights
Why Choose OMNISCAN™?
OMNI means ALL — SCAN every shape, every type. Process over 1,000+ parcels per hour with uncompromising clarity.
- Built for Tomorrow - Future-proof design with modular upgrades
- Operational Durability - Engineered for 24/7 industrial use
- AI-Powered Intelligence - G1 continuously learns and improves
- Local Support - Engineering team based in India
- Universal Capability - Handles any parcel within range
Experience OMNISCAN™
Ready to see how precision scanning transforms operations?
Schedule a Demo
See OMNISCAN™ in action with a personalized demonstration tailored to your workflow.
Get Technical Documentation
Download specifications, integration guides, and API documentation.
Contact Us
- Email: [email protected]
- Phone: +91 7354844780
- WhatsApp: +91 7354844780
SYNCGEARS — SYNC today. SHIFT forward. SOAR.
Synchronise · Orchestrate · Automate · Repeat
OMNISCAN™ is proudly designed and developed in India by SYNCGEARS, bringing intelligent physical systems to operations nationwide.
